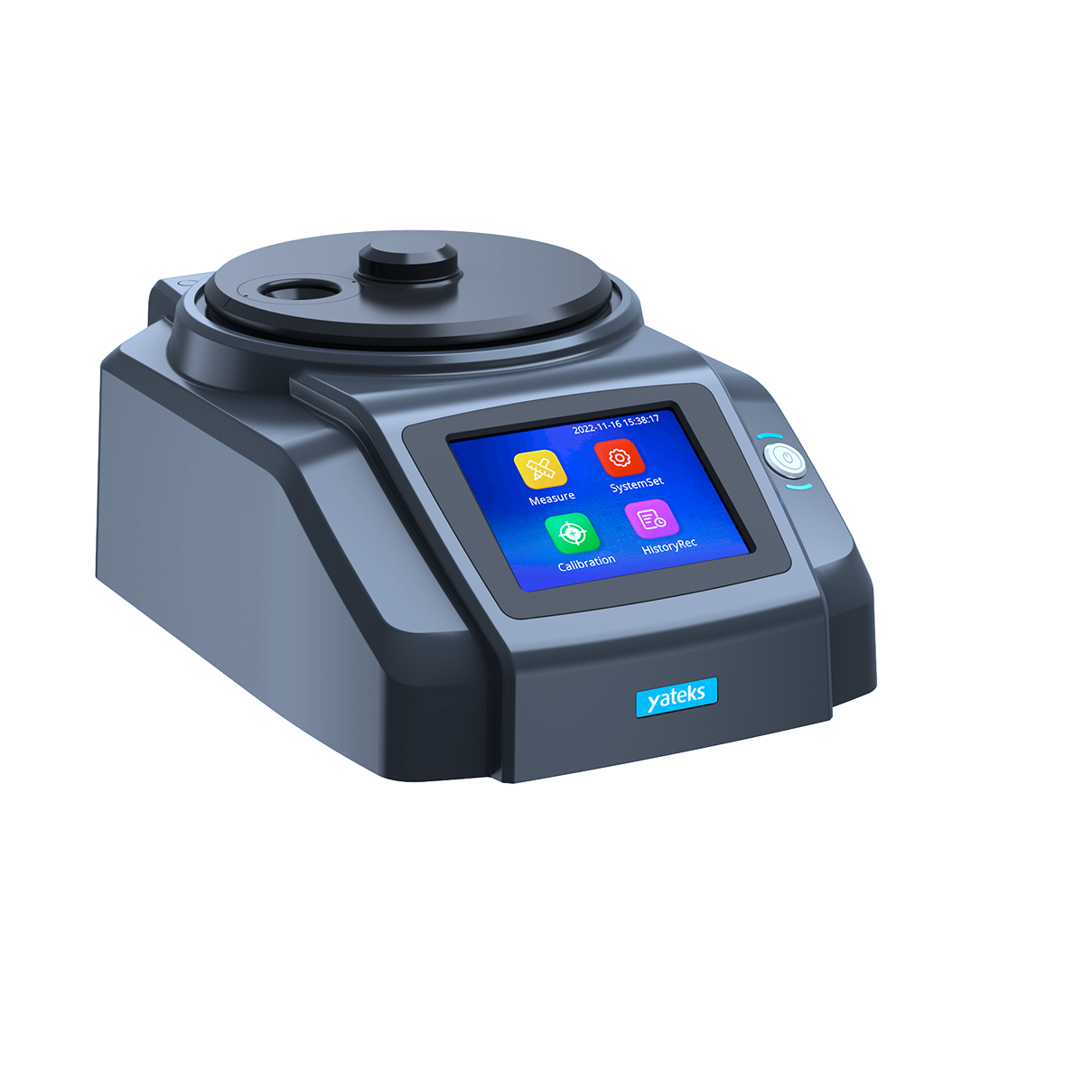

YTD-3 Ferrous Debris Monitor
Yateks
The YTD-3 Ferrous Debris Monitor provides rapid, quantitative analysis of ferromagnetic wear particles in oil by measuring the PQ index—a dimensionless value indicating particle content and size. Highly sensitive to larger particles, it complements elemental analysis to enhance fault detection.
The device features an intuitive interface, allowing users to choose detection methods, name data, or use default settings for quick analysis. Results are displayed in real time during testing. Samples are measured in a 4.5 ml special oil sample container with a matching conversion ring.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Functionality:
- Rapid, quantitative analysis of ferromagnetic wear particles in oil samples.
- Measures the PQ index (dimensionless) with sensitivity to both content and size of ferromagnetic wear particles.
- Advantages:
- Self-calibration with easy operation requiring no specialized training.
- High sensitivity to wear debris particles >1 µm.
- Fast testing with results available in 10 seconds.
- Suitable for both lubricating oil and grease analysis.
- User Interface:
- 5.6-inch TFT color LCD display with capacitive touch screen.
- Real-time display of results via a human-computer interaction interface.
- Options for detailed settings or quick detection using defaults.
- Specifications:
- Power: AC 100V–240V, low consumption (<15W).
- Measurement: Range 0–15000 PQ, resolution 1 PQ, repeatability within ±0.5% or ±3 PQ.
- Environmental suitability: Operates in 15℃–30℃ with 30%–80% humidity.
- Applications:
- Oil Analysis Labs, Wind Energy, Oil & Gas, Power Generation, Offshore, and Transportation sectors.
- Design:
- Compact and lightweight (<5kg).
- Includes a 4.5 ml special oil sample container and matching conversion ring.
- Connectivity:
- USB for data export.
- RS232 serial communication port for external data transfer.
