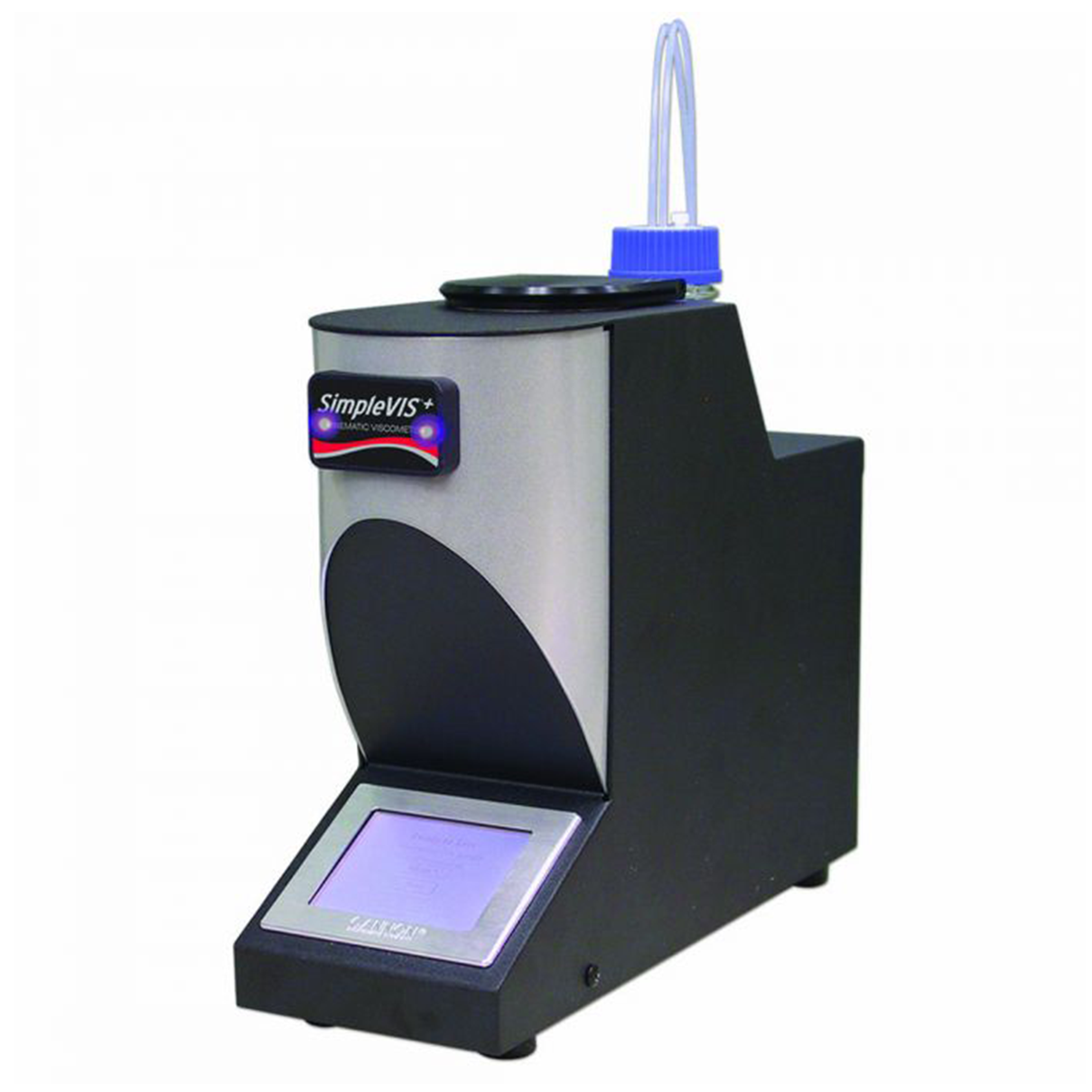

SimpleVIS + Portable Automated Kinematic Viscometer
The SimpleVIS®+ is a compact, portable viscometer designed for quick, precise viscosity measurements, with a built-in active cooling system for rapid temperature control. The device offers near D445 accuracy and can measure viscosities from 2 to 700 mm²/s (cSt) at temperatures between 40 °C and 100 °C. Its robust design allows for easy, fast use in various applications, including monitoring product chain of custody, contamination checks, point-of-use testing, industrial lubrication blending, petroleum product packaging, and distribution, as well as remote applications in power plants and mining operations.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Automated and precise determination of direct kinematic viscosity at 40 °C and 100 °C*
- Provides kinematic viscosity measurement without the need to correlate dynamic viscosity data
- Cools from 100 °C to 40 °C in ~30 minutes
- Viscosity range
- Standard range tube provides viscosities from 10 to 700 mm²/s (cSt) at 40 °C and 5.5 to 200 mm²/s (cSt) at 100 °C
- Low range tube provides viscosities from 2 to 140 mm²/s (cSt) at 40 °C and 100 °C
- Follows ASTM D7279 and offers near ASTM D445 precision due to exceptional temperature control (±0.05 °C)
- Rapid cycle time of 3 to 5 minutes from sample injection to test result
Portable, self-contained and dependable
- Weighs approximately 10 lb and takes up less space than a coffee maker
- Does not require a PC or any external utilities
- Optional power inverter enables the instrument to run off of a 12 Vdc vehicle charging port
- Rugged, reliable design has only two moving parts
Simple & safe operation
- Graphical touch screen provides step-by-step test instructions
- Factory calibrated; no gauges or valves to adjust
- Solid-state temperature control eliminates need for liquid bath
- Intrinsically safe unit operates on 12 Vdc power
- Optional printer available
Economical
- Low cost of ownership
- Requires only 10 to 15 mL of solvent and 0.5 mL of sample per test
- No sample vials required; sample is injected directly into the instrument
*The unit can store two temperatures and is pre-calibrated at 40 °C and 100 °C but custom calibration at any two temperatures between 40 °C and 100 °C is available on request.
