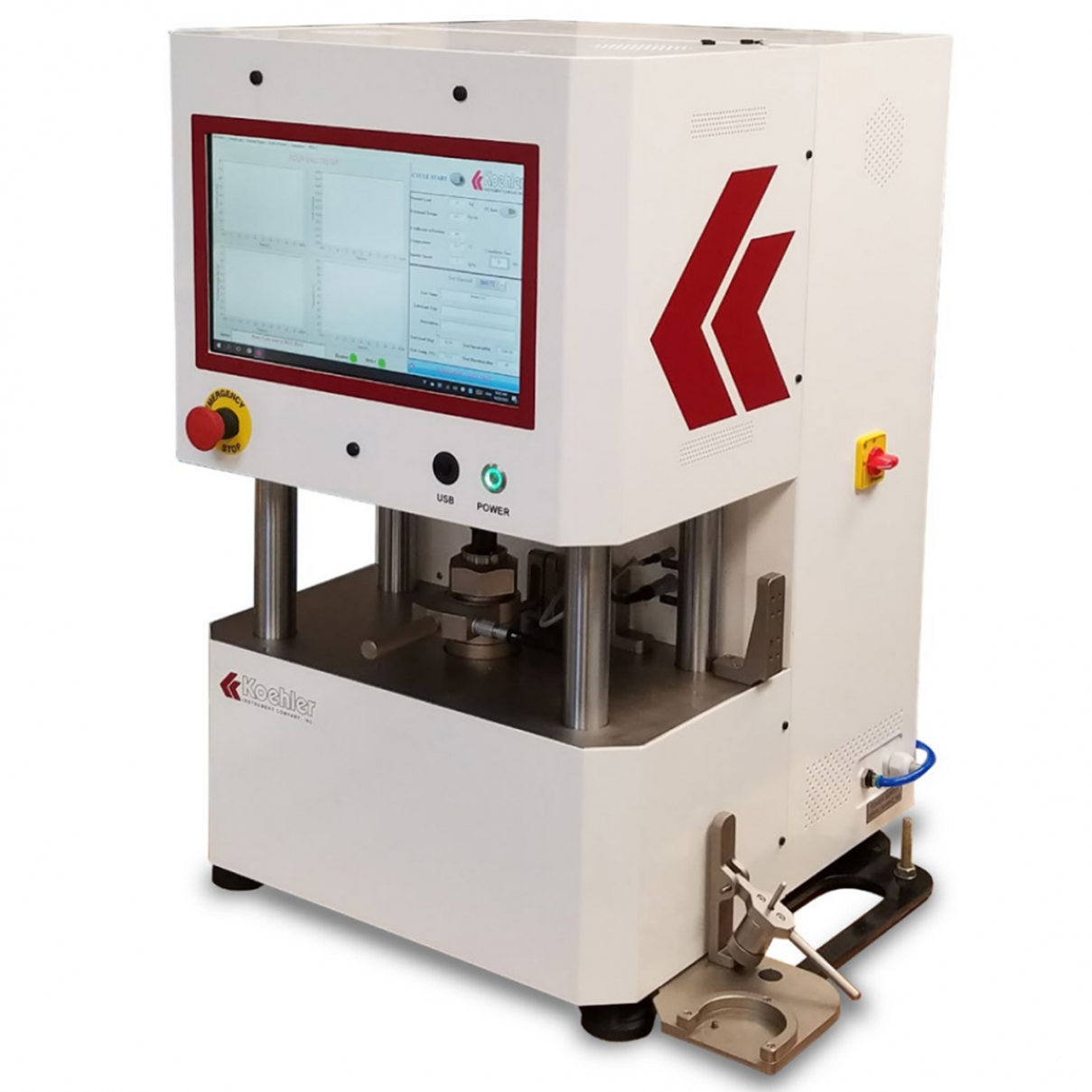

Four Ball Wear and (EP) tester
The Four Ball Wear and extended pressure (EP) Tester is an advanced instrument designed for testing lubricants’ wear preventive (WP) and extreme pressure (EP) properties, as well as determining load-carrying capacities. Conforming to ASTM and DIN standards, it features an integrated 15-inch multi-touch control panel, precise AC servo motor speed control, and a dynamic pneumatic loading system (up to 1000 kg).
The system measures critical variables such as friction force, load, and lubricant temperature, with data acquisition via USB 3.0. Applications include determining lubricant coefficient of friction, load wear index, and Stribeck curve phenomena. Accessories expand functionality for specialized tests like rolling fatigue and KRL shear stability.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Purpose: Tests lubricants for friction, wear, and extreme pressure (EP) properties to ASTM standards.
- Test Range: Speeds up to 2000 RPM, temperatures up to 200°C, and loads up to 1000 kg.
- Control: 15-inch touchscreen, AC servo motor for precise speed, and pneumatic load system (0–1000 kg ±0.2 kg).
- Dynamic Options: Constant, incremental, and step-wise loading for advanced analyses like Stribeck curves.
- Safety & Data: Built-in safety controls; USB 3.0 for data transfer; real-time data acquisition.
- Compliance: ASTM, CEC, IP, and DIN standards.
- Accessories: Low-temp ball pots, cooling units, digital scar measurement tools, and more.
A robust, precise tool for evaluating lubricant performance under customizable conditions.
