Existent gum in fuels by jet evaporation

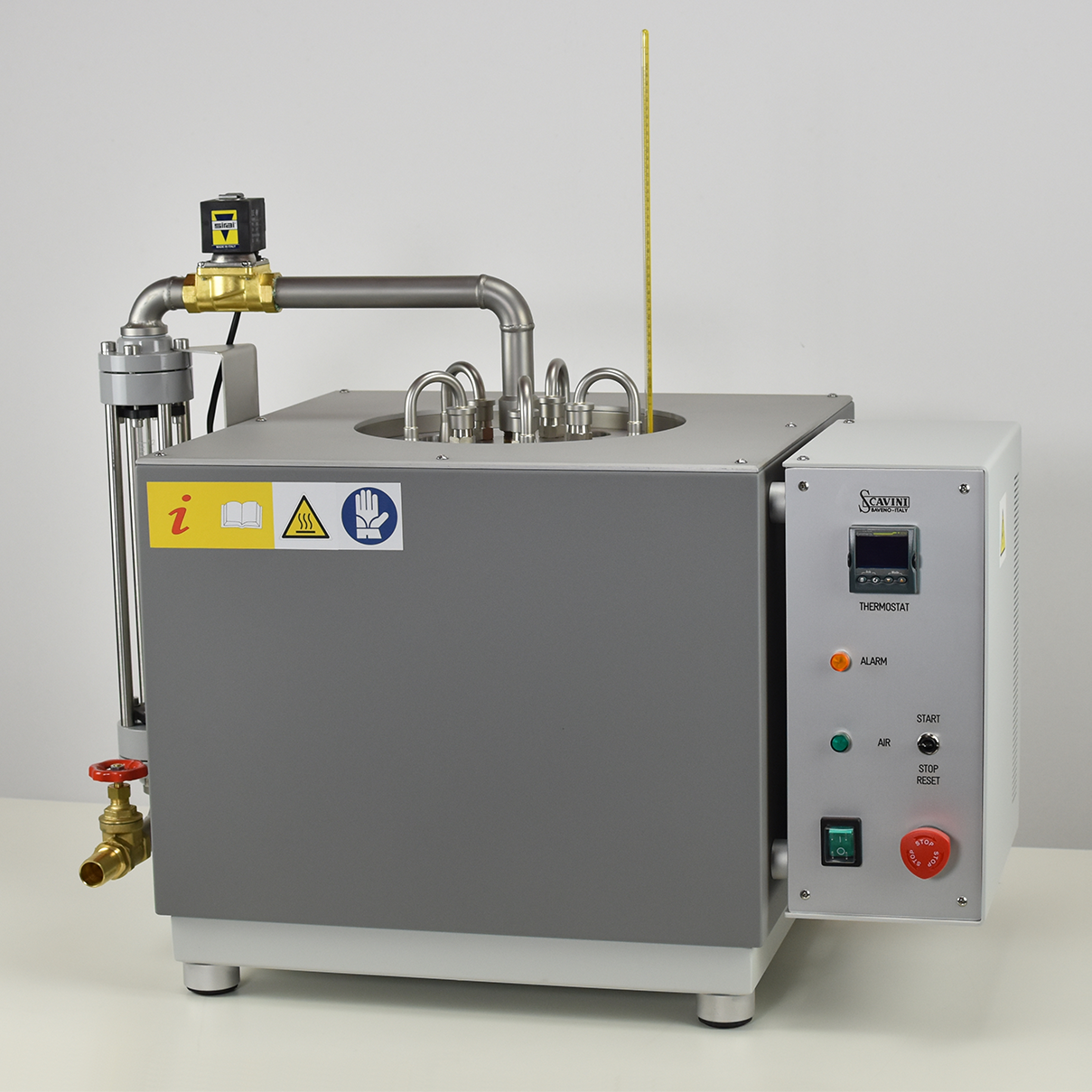

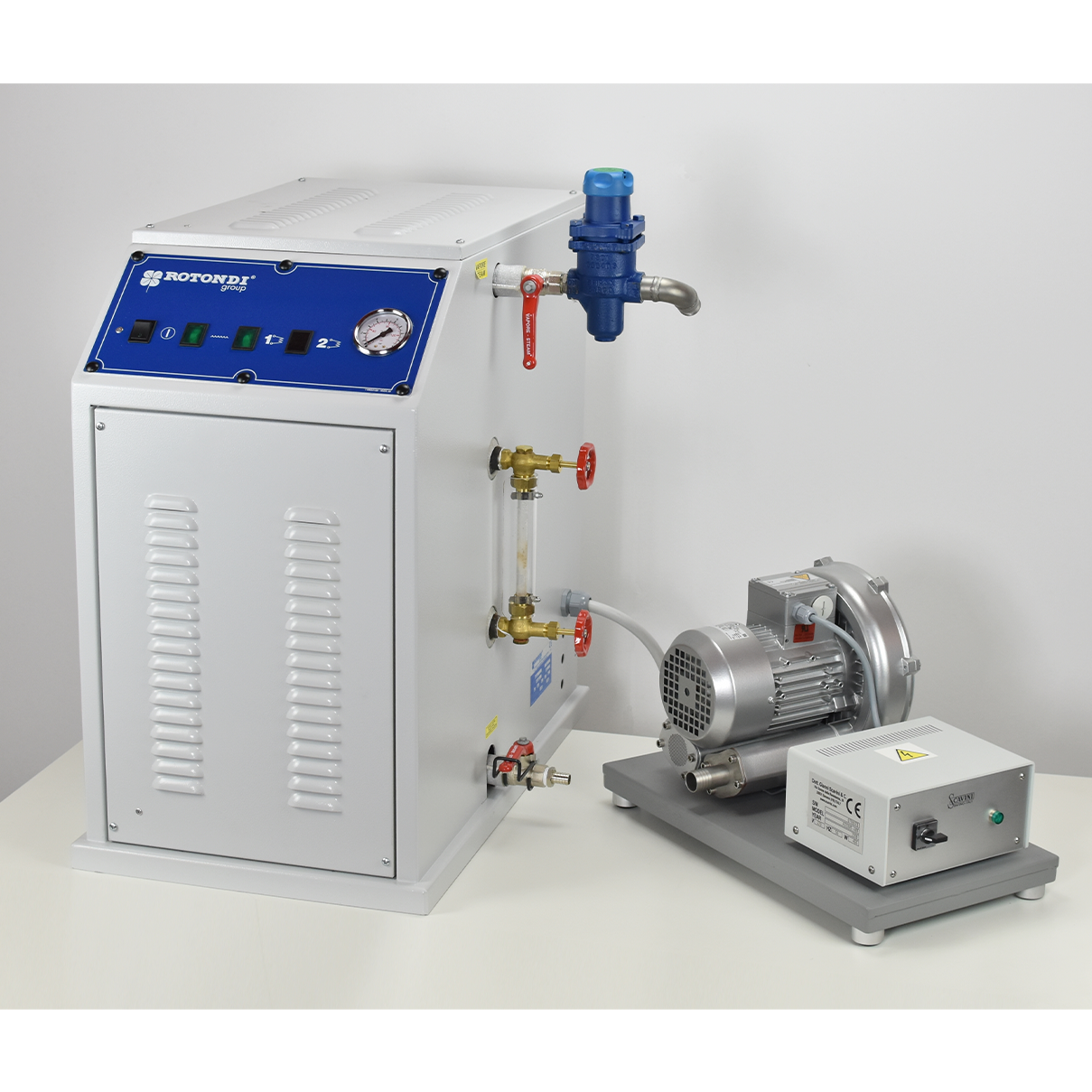

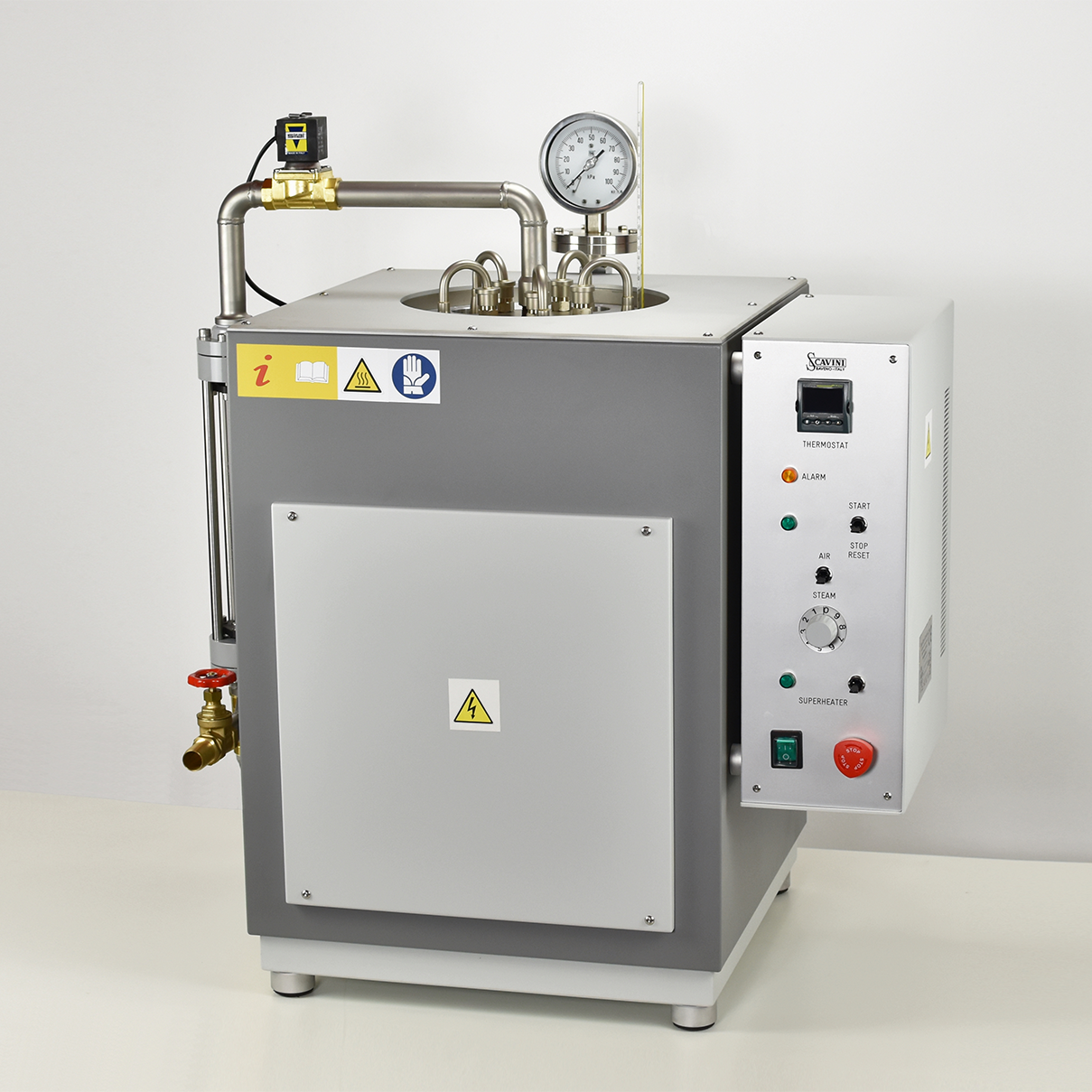

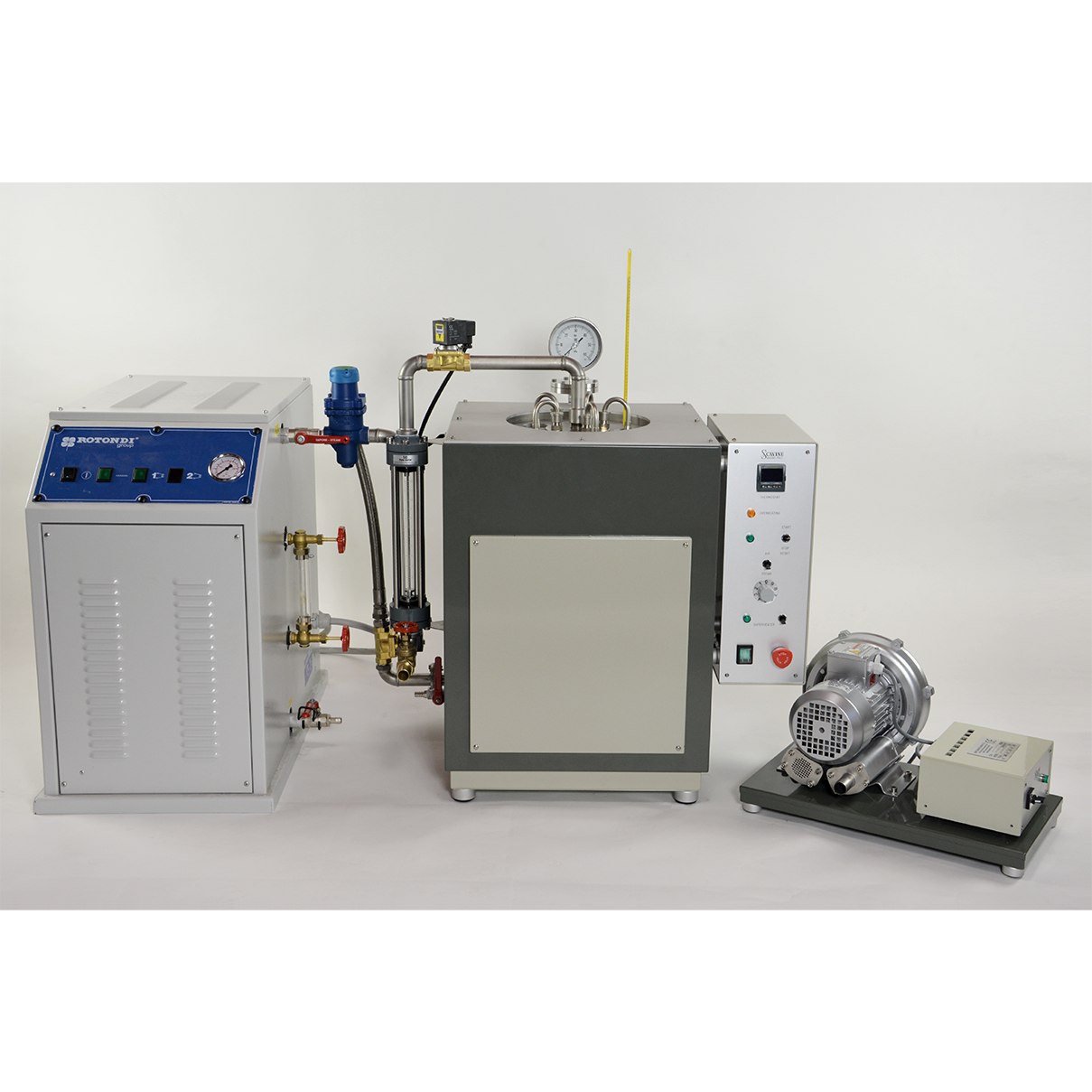

The apparatus for the determination of existent gum in fuels by jet evaporation (ASTM D 381 – IP 131 – ISO 6246) is a reliable and efficient tool for testing gasoline. It is available in two versions: one for the “Air Jet” test and another for both the “Air and Steam Jet” tests, which includes a built-in steam superheater. The apparatus features a robust benchtop steel case with a heating block, steam generator, and air blower. It includes a high-precision flowmeter, stainless steel gauge, and microprocessor thermoregulator with a digital display for accurate temperature control. With a CE mark and user manual, this apparatus is designed for easy operation and reliable performance.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Versions Available:
- Air Jet test for gasoline.
- Air and Steam Jet tests with steam superheater.
- Construction:
- Enamel-finished steel case with robust base.
- Five-place aluminum heating block with removable stainless steel steam outlets.
- Stainless steel coaxial heater and steam superheater with regulator.
- Precision and Control:
- High precision flowmeter (0 to 12 m³/h) for Air Jet test.
- Stainless steel gauge (0 to 6 psi) for Steam Jet test.
- Microprocessor thermoregulator with PT100 RTD probe, 1°C display accuracy, regulation accuracy ±0.5°C, range up to 300°C.
- Safety device against overheating.
- User Interface:
- Easy access control box with anodized aluminum panel.
- English indications and user manual.
- Power and Dimensions:
- Air and Steam version 220V – 50Hz: 3500 W, dimensions 860 x 560 x 840 mm, weight 98 Kg.
- Air Jet only version: 2000 W, dimensions 750 x 490 x 680 mm, weight 73 Kg.
