Determining the Ignition Temperature of Petroleum Products

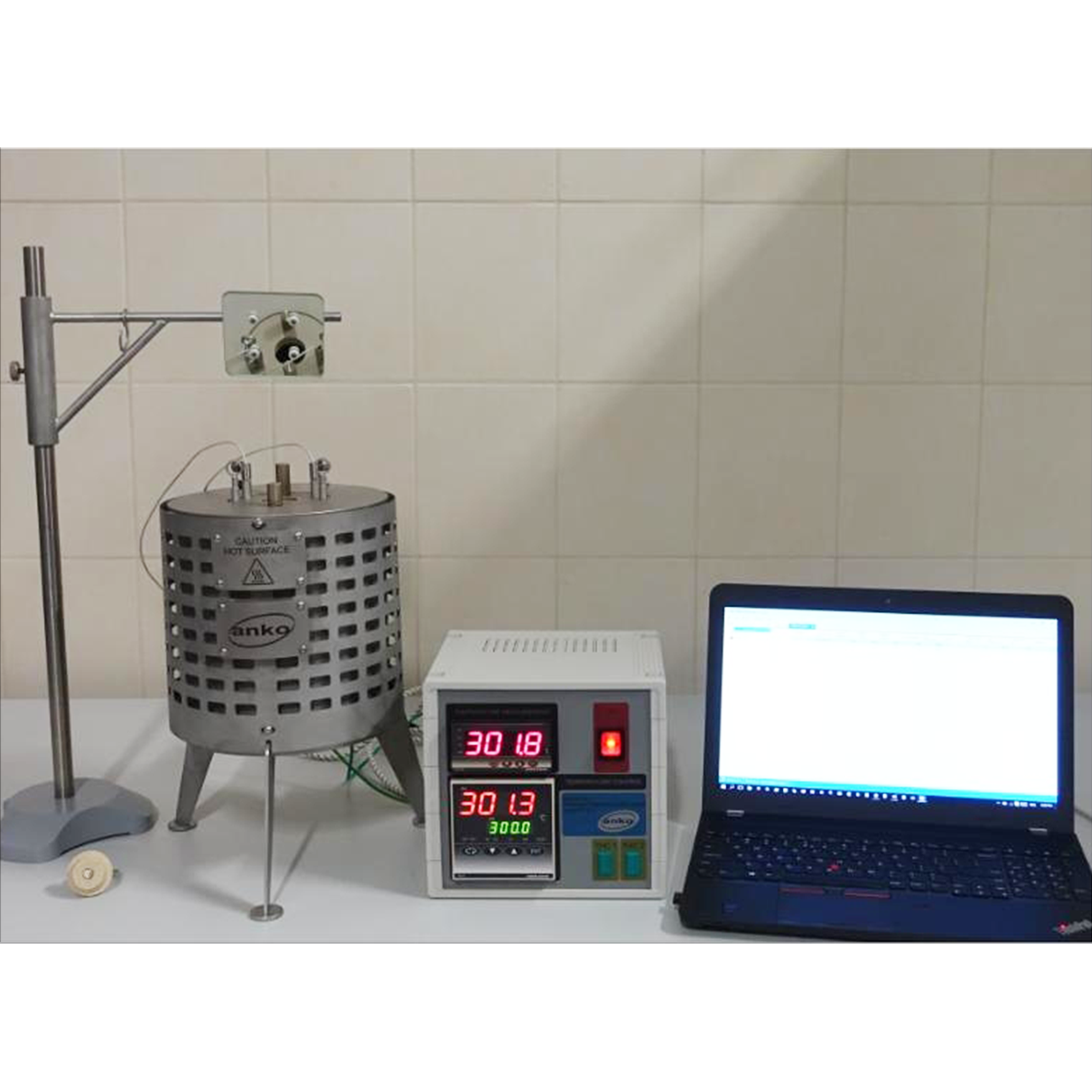

The ignition temperature determination apparatus is designed for testing the auto-ignition temperature of flammable liquids and gases, compliant with standards DIN 51794, EN 80079-20-1, and EN 14522. It features a stainless steel furnace with corrosion protection and type K thermocouples for precise temperature control and measurement. The furnace uses high-quality insulation and a PID controller for temperature regulation, ensuring an accuracy of ±0.3% full span ±1 digit. The apparatus operates on either 110 or 230 VAC.
Additional options include a third temperature circuit with an isolated, Inconel®-shielded type K thermocouple for furnace temperature testing, a top cover plate assembly with a thermocouple and 200ml glass flask, and a hand-operated bulb pump. Custom design accessories are also available. For data registration, the device offers a USB output compatible with the external ANKO ReqTemp® program. This comprehensive setup ensures reliable and accurate determination of ignition temperatures for various flammable substances.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Standard References
- DIN 51794: Determines ignition temperature of petroleum products.
- EN/ISO/IEC 80079-20-1: Classifies gas and vapor characteristics in explosive atmospheres.
- EN 14522: Specifies auto-ignition temperature for gases and vapors.
- Method A.15: Defines auto-ignition temperature for liquids and gases under EC guidelines.
Specification of DIN 51794 Furnace
- Construction: Stainless steel body and metal parts for corrosion protection.
- Test Thermocouple: Type K, wire diameter ø0.5mm.
- Temperature Control Thermocouple: Type K, Inconel® shielded, isolated.
- Insulation: High quality.
- Power Supply: 110 or 230 VAC.
Temperature Control & Readout Block
- Controller: PID.
- Thermometer Accuracy: ±0.3% full span ±1 digit.
Options
- Additional 3rd Temperature Circuit: Type K thermocouple, Inconel® shielded, isolated for furnace temperature testing.
- Top Cover Plate Assembly: With thermocouple and 200ml glass flask.
- Hand-operated Bulb Pump Block: According to point 7.8 of DIN 51794.
- Custom Design Accessories.
USB Output: External ANKO ReqTemp® program for temperature registration.
