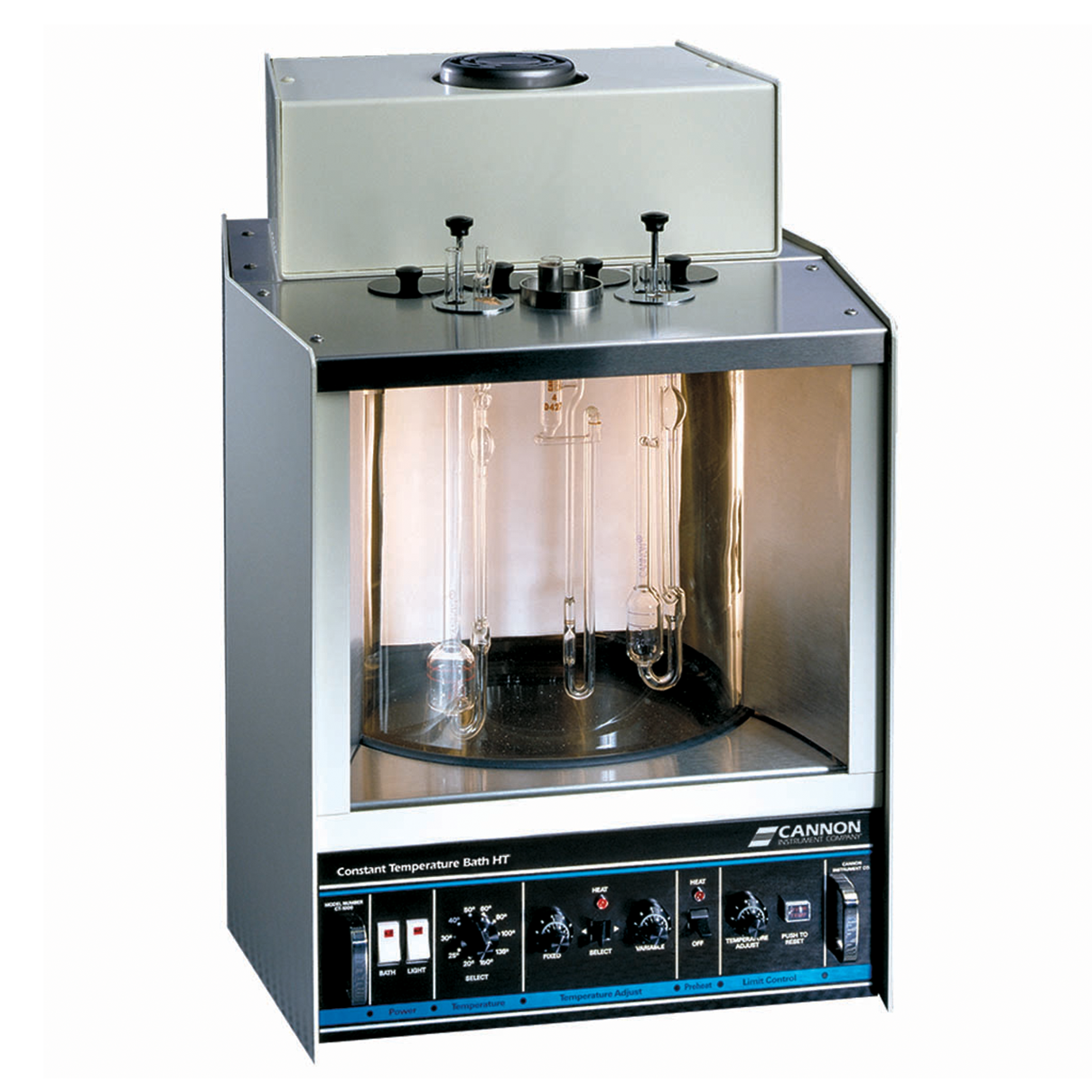

CT-1000HT Series Constant Temperature Bath
The CT-1000HT Extended Range Constant Temperature Bath is designed for precise kinematic viscosity testing in compliance with ASTM D445/D446 and ISO 3104/3105 standards. It offers a wide temperature range from 25 °C to 200 °C with high accuracy. Featuring a motor-driven stirrer for uniform bath temperature, the CT-1000HT ensures safe operation with overtemperature and low liquid level sensors. Its user-friendly design accommodates up to seven simultaneous viscosity determinations. Ideal for oil and fuel testing, it also provides efficient temperature control with two electric heating elements and a stainless steel cooling coil for flexibility in temperature management.
Test temperatures < 40 °C and high ambient temperature test environments require an optional bath cooler
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Precise and accurate temperature control
- Temperature range: 25 °C to 200 °C
- Temperature accuracy: ± 0.01 °C from 25 °C to 100 °C; ± 0.03 °C from 100 °C to 200 °C
- Temperature selection is variable between 25 °C and 200 °C or selectable at ten pre-set temperatures (25 °C,40 °C, 60° C, 80 °C, 100 °C, 135 °C, 150 °C, 165 °C, 185 °C, and 200 °C)
- Meets ASTM D445 temperature sensitivity requirements for kinematic viscosity determination
- Motor driven stirrer ensures a uniform bath temperature
Safe operation
- Bath thermistor senses over-temperature fault and removes power
- Thermistor disconnection results in removal of bath heater power
- Liquid level sensor prevents operation if bath liquid is not at a safe operating level
Efficient, user-friendly design
- Seven glass viscometer ports (each 2” in diameter) and two thermometer ports (each 0.4” in diameter) allow up to 7 simultaneous viscosity determinations
- Two electric heating elements quickly heat bath media to the selected temperature
- Stainless steel baffle provides a plain reflective viewing background
- Integrated stainless steel cooling coil allows connection to tap or recirculating water chiller for temperatures slightly above or below ambient. An external thermoelectric bath cooler is also available.
- Convenient drawer provides easy access to electrical controls
Reliable performance
- Well tested CANNON bath platform offers reliability and dependable support
- All wetted components are manufactured from high quality stainless steel or glass
The heavy duty aluminum frame offers a corrosion-resistant epoxy finish
