Apparatus for the Determination of Vapor Pressure of Liquefied Petroleum Gases

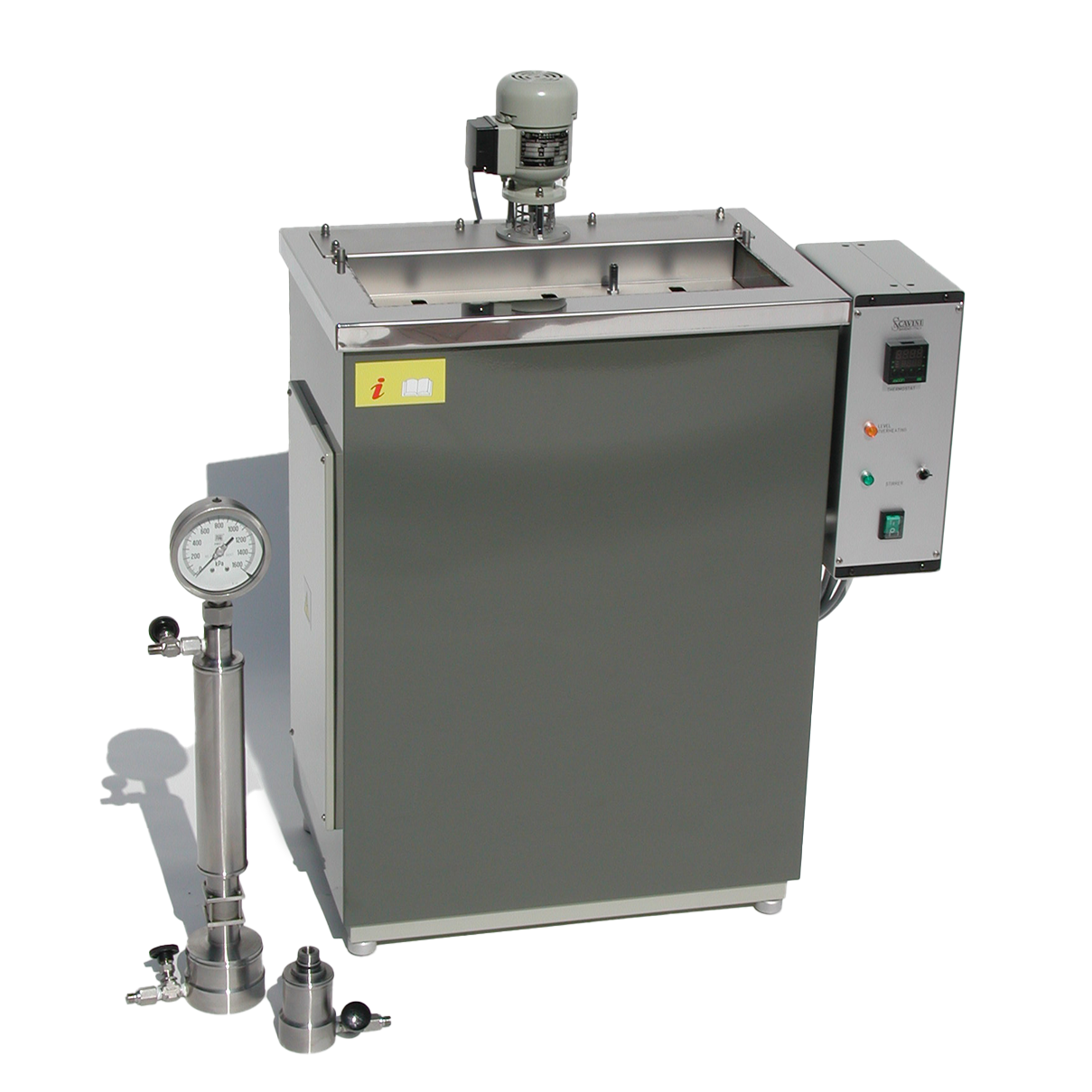

The Apparatus for the Determination of Vapor Pressure of Liquefied Petroleum Gases (ASTM D 1267 – IP 161 – ISO 3007, 4256) is a reliable and efficient solution for accurately measuring vapor pressures. This apparatus features a floor mounted water bath with a sturdy support system for three vapour pressure cylinders, enclosed in an enamel finished steel case. The stainless steel water bath can securely immerse three vessels, with a convenient drain cock for easy maintenance.

Equipped with an electric stirrer and a stainless steel heater, precise temperature control is achieved using a microprocessor thermoregulator with a built-in digital display, ensuring accuracy within 0.1°C. Safety measures include a power supply cut-off and warning lamp in case of overheating or low water levels. The control box, located on the right side of the apparatus, provides easy access to all electronics and is accompanied by an anodized aluminium control panel, with clear English written indications.

This product is designed for 220 V/50 Hz connections and consumes 1000 W of power, with dimensions of approximately 500mm x 300mm x 850mm and weighing 50 kg
