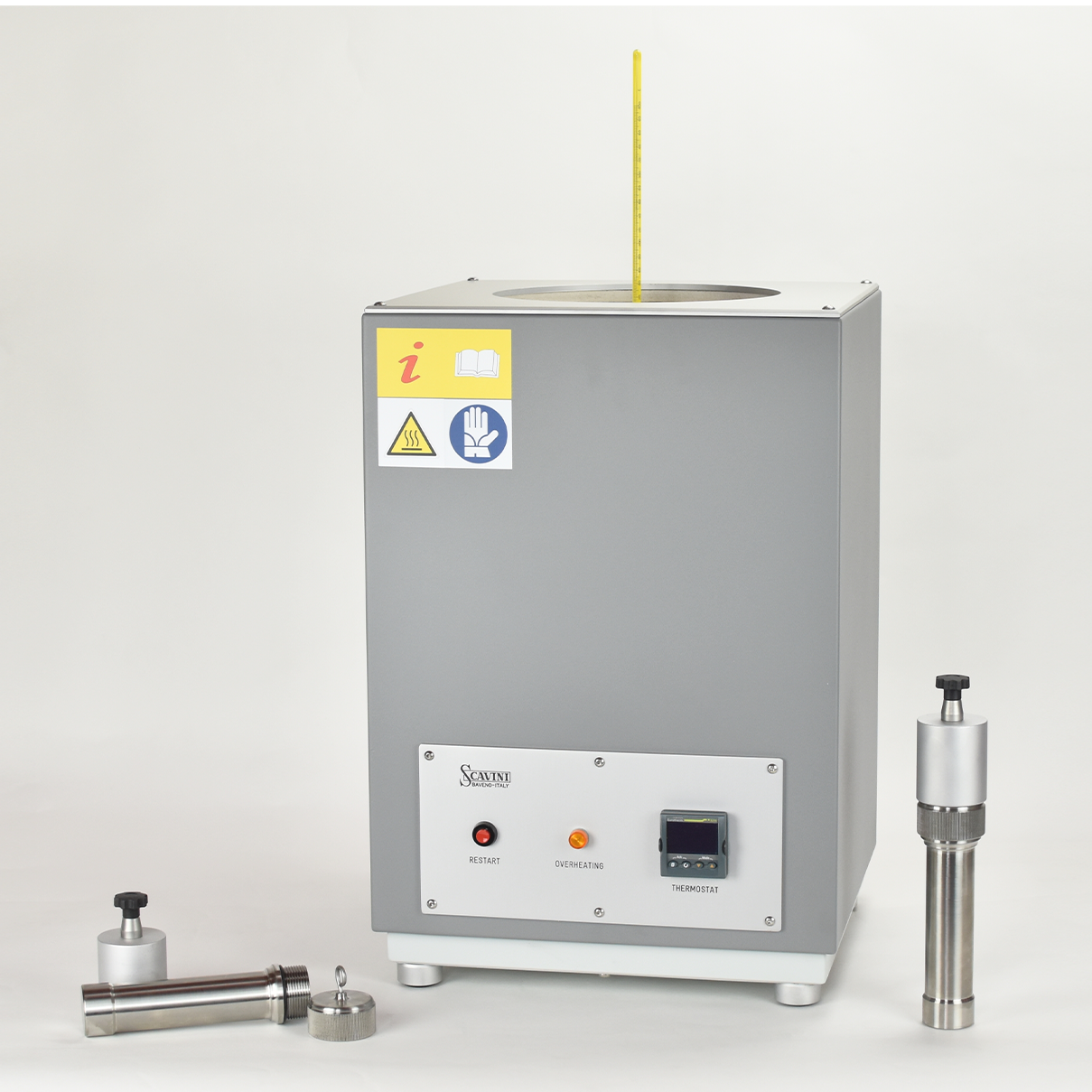

Apparatus for the determination of copper corrosion of petroleum products
The Apparatus for the Determination of Copper Corrosion of Petroleum Products (ASTM D130 – ISO 2160) is a benchtop model featuring an enamel finished steel case and an aluminium block with four large jackets for vessels and eight smaller jackets for test tubes, providing ruggedness and reliability. It includes a stainless steel coaxial heater, control thermometer jacket, microprocessor thermoregulator with PID action, and a built-in temperature display accurate to 0.1°C. The system operates from 30°C to 150°C with a regulation accuracy of ± 0.1°C and includes a safety device against overheating. It is CE marked, requires 220V – 50Hz power, and measures 330 x 330 x 500 mm, weighing approximately 30 kg.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Design and Construction:
- Benchtop model with an enamel finished steel case.
- Aluminum block with four large and eight small jackets for vessels and test tubes.
- Rugged and reliable, eliminating the need for boiling water baths.
- Heating and Temperature Control:
- Stainless steel coaxial heater.
- Microprocessor thermoregulator with PID action.
- Temperature display with 0.1°C accuracy (PT100 RTD probe).
- Working range: 30°C to 150°C, regulation accuracy ± 0.1°C.
- Safety device to prevent overheating.
- User Interface and Safety:
- Easy access control box with anodized aluminum control panel.
- English written indications and user manual.
- CE marked for safety compliance.
- Power and Dimensions:
- Operates on 220V, 50Hz connections with a power consumption of 1500W.
- Dimensions: 330 x 330 x 500 mm, weight approximately 30 kg.
