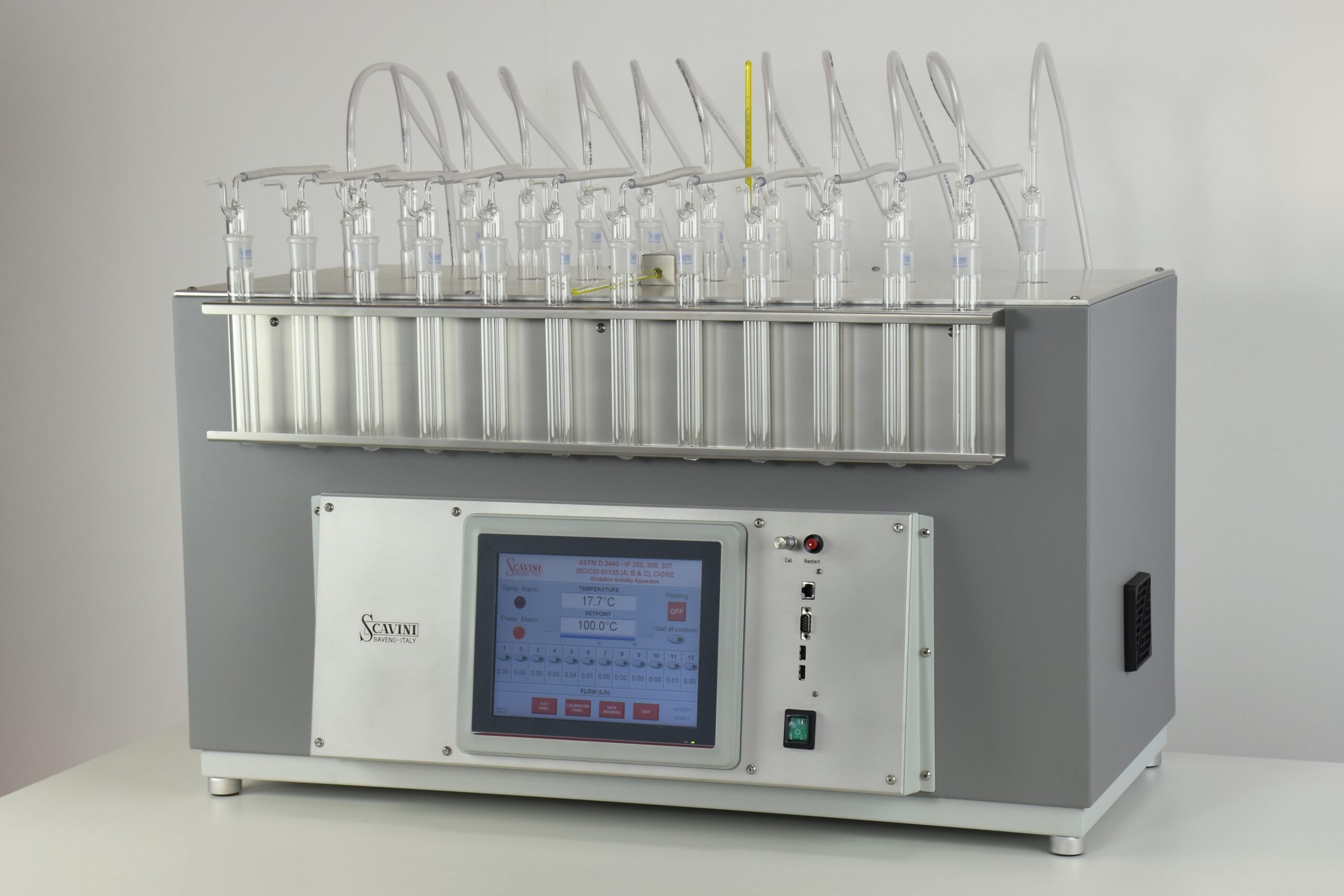

Apparatus for Oxidation stability of mineral insulating oils
The Oxidation Stability Apparatus is a compact benchtop instrument designed to evaluate the oxidation stability of mineral insulating oils in accordance with ASTM D2440, IEC 61125, EN 61125, and IP 280, 306, and 307 standards. Housed in a durable enamel-coated steel cabinet, the instrument features an aluminum dry-block bath available with 4, 8, or 12 test positions.
Upon request, a bath configuration compliant with the IP 48 standard can also be supplied.
Each position is equipped with an independent electronic mass flow controller for precise, consistent airflow managed through an 8.4-inch touchscreen interface. Stainless steel heaters, high-efficiency insulation, and microprocessor temperature control with a Pt100 RTD probe ensure uniform heating. A digital display and accessible control box enhance usability. The unit operates on 220V, 50/60Hz power, with model-dependent size, weight, and consumption.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Flexible Position Options: Available in four, six (on request), eight, or twelve positions to accommodate various testing needs.
- Durable Construction: Enamel-finished benchtop steel case and anodized aluminum control panel ensure longevity and ease of maintenance.
- Efficient Temperature Control: Features a microprocessor thermoregulator with PID action and 0.1°C accuracy, suitable for temperatures from ambient to 220°C.
- Precision Flow Control: Individual electronic mass flow controllers with an 8.4” touch-screen interface and software for recording flow and temperature data throughout the test.
- High-Quality Materials: Equipped with aluminum block bath, stainless steel heaters, and high-efficiency thermal insulation.
- Safety Features: Includes a safety device to prevent overheating.
- Compact Design: Dimensions and weights vary by model, providing space-efficient solutions for different lab setups.
- Four-place: 640 x 420 x 520 mm, 65 kg
- Eight-place: 640 x 420 x 520 mm, 80 kg
- Twelve-place: 1000 x 420 x 520 mm, 110 kg
- Power Specifications: Compatible with 220V – 50/60Hz connection; power consumption is 1500W (four and eight-place) and 2000W (twelve-place).
- Documentation: Comes with an English-written user manual and is CE marked.
