Apparatus for Corrosion of Cast Aluminium Alloys
The ASTM D 4340 apparatus evaluates corrosion in cast aluminum alloys within engine coolants under heat-rejecting conditions. It features a base with one or two heat-transfer corrosion cells, suitable for up to 40 psi and 160°C. Key elements include an electronic timer, thermostat, enamel-finished steel base, and a safety screen. The Pyrex-glass corrosion cell has stainless steel top/bottom plates and a 950 W heater. It includes a stainless steel manifold with a purge valve and pressure relief. Each unit has an electronic thermoregulator with a digital display and a safety device against overheating. The apparatus supports 220 V/50 Hz connections. Available as a single or double unit, it is CE marked and comes with an English manual.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Design and Construction
- Enamel-finished benchtop steel base with safety screen
- Pyrex-glass corrosion cell with stainless steel top and bottom plates
- Components
- Stainless steel heat transfer bar with 950 W coaxial heater
- Stainless steel manifold with purge valve, pressure relief valve, and gauge
- Filling nozzle with cap
- Temperature and Pressure Control
- Rated for up to 40 psi and 160 °C
- Electronic thermostat with PID control and digital display
- Type K thermocouple probe
- Independent thermostats and timers for twin-unit positions
- Safety and Compliance
- Overheating safety device
- CE marked
- Operation and Power
- Electronic timer to preset test duration; automatic heater shut-off
- Compatible with 220 V/50 Hz connections
- Power consumption: 2200 W (twin unit) / 1100 W (single unit)
- Models available and physical Dimensions

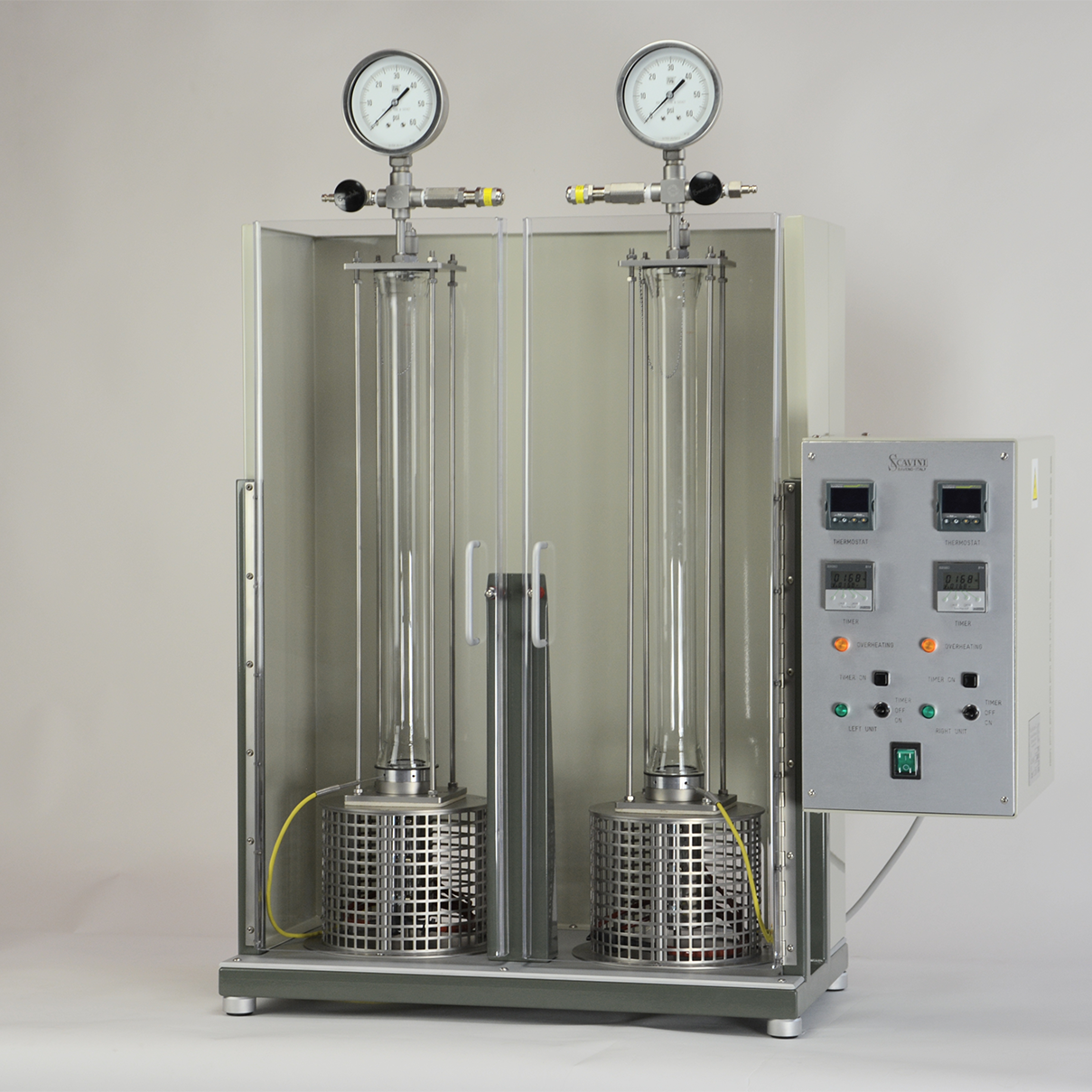

- AD4340-110 Twin unit: 800 x 350 x 850 mm

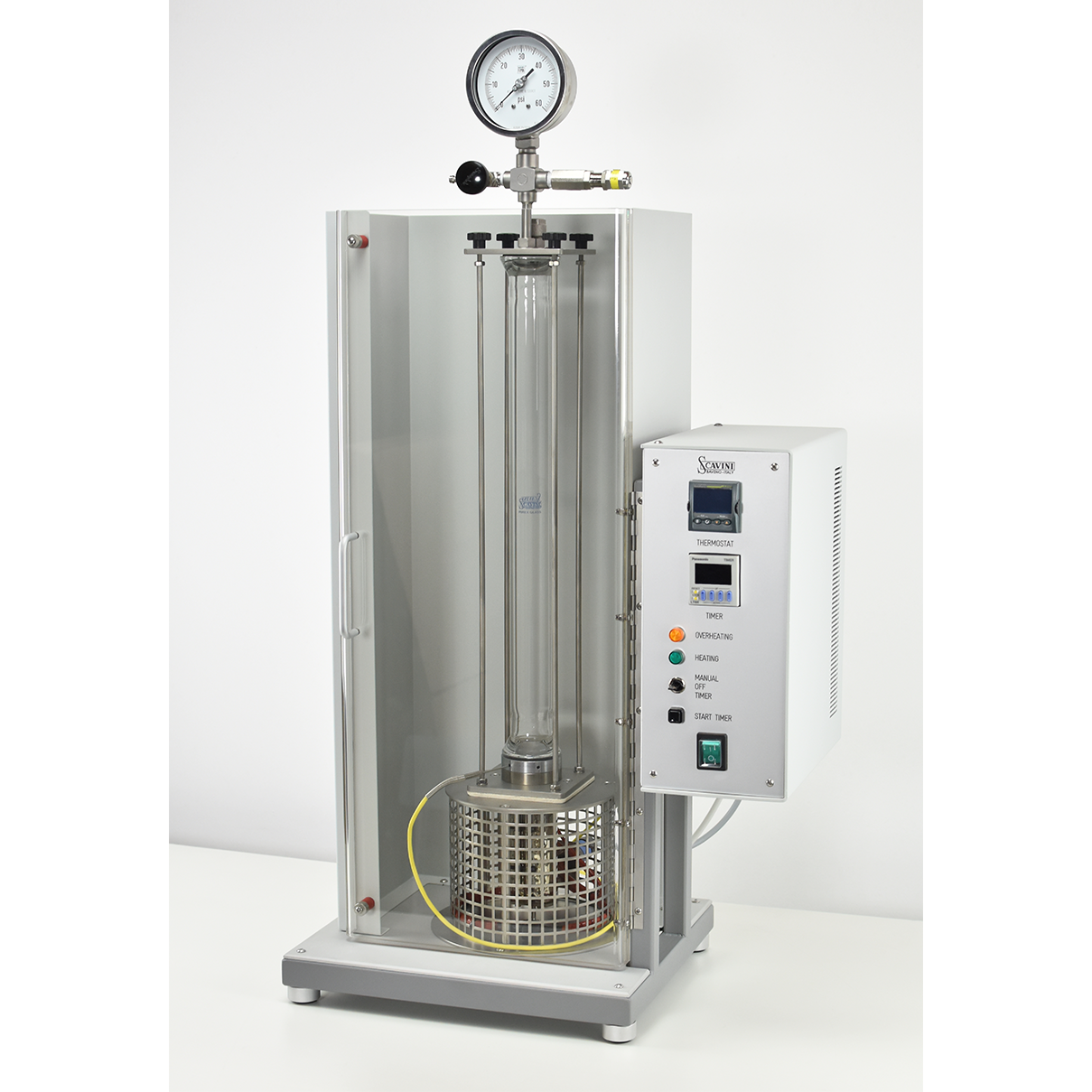

- AD4340-100 Single unit: 450 x 350 x 850 mm
- Documentation
- English user manual included
